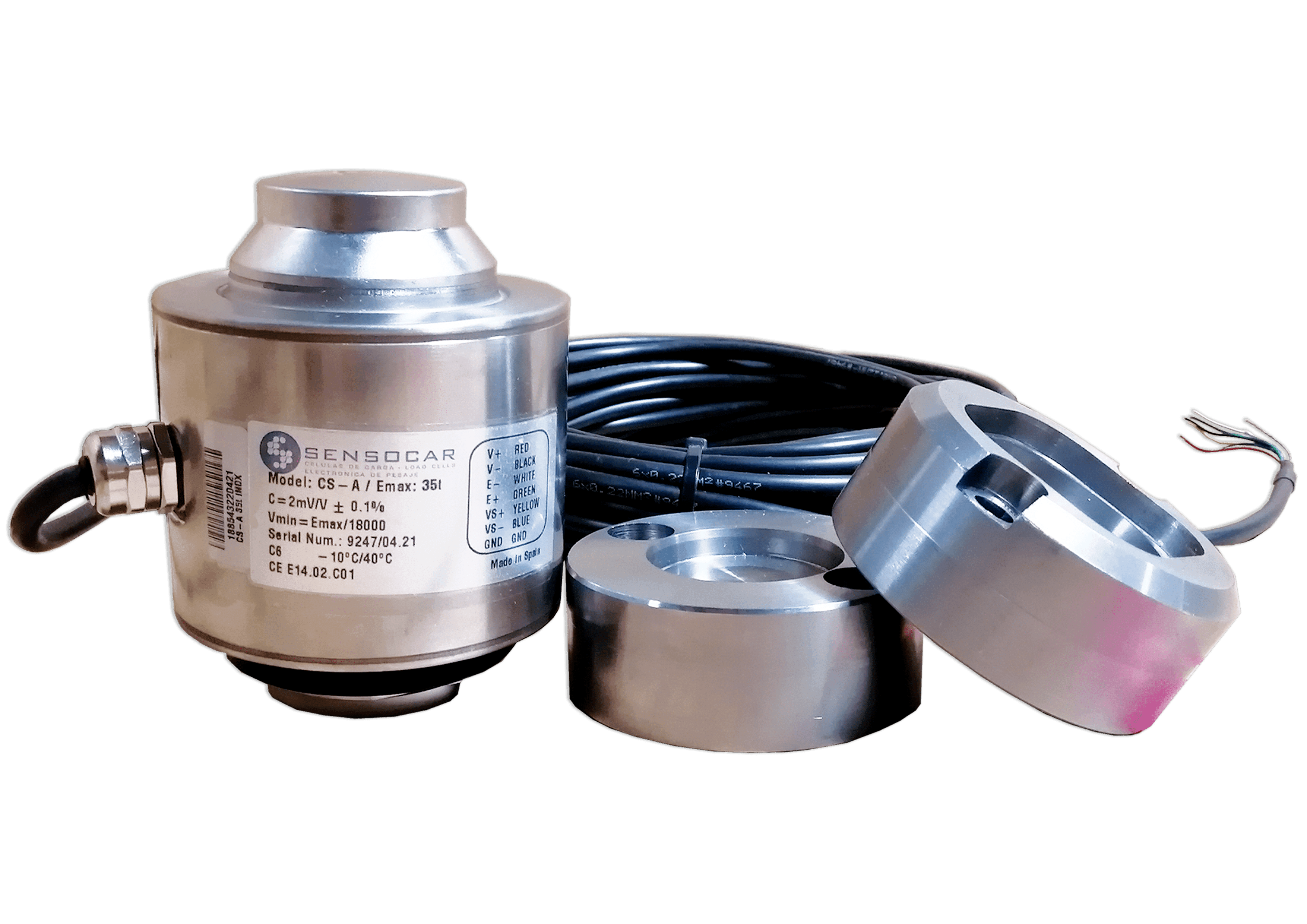

CS-A 35T – RM5,800

Description

Capacities: 35 t



• Compression load cell

• Up to 6000 divisions OIML-R60

• Fully stainless steel

• Fully welded. Protected against humidity IP-69K (EN 60529:2018)

• With gas dischargers to protect against atmospheric discharges

• Available cable with metallic cover



Technical Data:

Accuracy class	C3-C4-C5-C6
Rated output	2 ± 0.03% mV/V
Vmin	Emax/18000
Excitation Voltage	5÷15 V
Input resistance	800 ± 3?
Output resistance	700 ± 3?
Temperature compensation	-10ºC/+40ºC
Temperature limits	-40ºC/+80ºC
Insulation resistance	> 5000 M?
