SC-A12

Description

• Approved according to OIML R76 and EN 45501

• Graphic screen 7′

• 24-bit A/D Converter (1,000,000 Internal div.)

• ALIBI MEMORY (DSD)

• Compatible with the other equipment of the SC-AX family

• Made in stainless steel

• Dimensions: 33x11x26 cm



Technical Data:

Accuracy class	III
Maximum number of verifi cation scale intervals	10000
Minimum input voltage per verifi cation scale interval	0,6 V
Max. signal voltage for dead load	10mV
Voltage of the measuring range	5mV – 15mV
Minimum load cell impedance	40
Electromagnetic Susceptibility	10V/m
Wide range of supply voltages	88 – 264 VAC
Maximum temperature range	-10°C a 40°C



Truck scales firmware:

• 5 types of weights (Entrance/Exit, Manual Tare, Memorizrd Tare, Direct Ticket and Manual weight)

• Historical up to 1000 weights

• 5 TABLES to include data such as product, company, origin, destination, etc.

• +500 Records per table

• Export and Import of table records in .csv files to view or edit in a spreadsheet

• Configurable Ticket and Reports

• User profiles

• Load cell diagnostics

• More tan 50 communication protocols (including MODBUS)

• Languages: Spanish, English, German, French, Italian, Portuguese

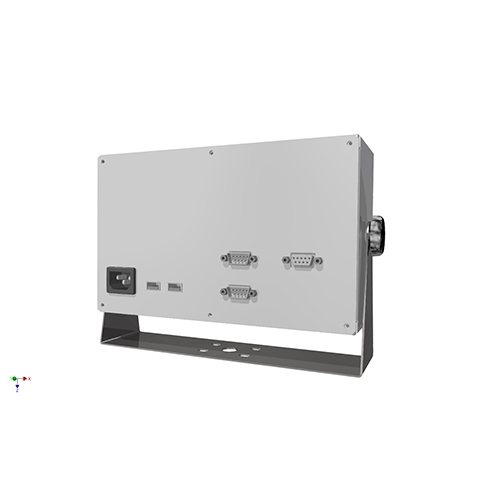

Connections:

• 2 Serial ports (RS232 or RS485)

• 2 USB Host Ports (To connect universal peripherals such as mouse and keyboard)



Options:

• Internal Battery

• Ethernet connection

• USB Device (PC) connection
