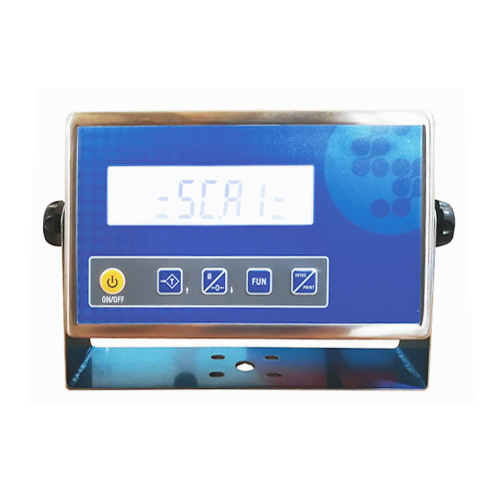

SCA1 INOX LED

Description

• Approved according to OIML R76 and EN 45501

• 32-bit microprocessor

• 24-bit A/D Converter (1,000,000 Internal div.)

• Weight processing via adaptive filters

• Real time clock

• RS232 Communications Port

• Second RS232 or RS485 Communications Port



Technical Data:

Accuracy class	III
Maximum number of verifi cation scale intervals	10000
Minimum input voltage per verifi cation scale interval	0,6 ?V
Max. signal voltage for dead load	10mV
Voltage of the measuring range	5mV – 15mV
Minimum load cell impedance	40 ?
Electromagnetic Susceptibility	10V/m
Wide range of supply voltages	80 – 264 VAC
Power consumption	1,2W (LED) 0,9W (LCD)
Maximum temperature range	-10°C a 40°C



Options:

• Internal Battery

• Gives the device autonomy of up to 42 hours (50 hours in the LCD version)

• Automatic loading by connecting the device to the power supply

• Automatic switching between the external power supply mode and battery mode

• IP-65 waterproof according to standards

• IP-67 waterproof according to standards in INOX versions



Software:

• 32-bit microprocessor

• 24-bit A/D Converter (1,000,000 Internal divisions)

• Weight processing via adaptive filters

• Calibration and Self-Calibrating

• Programmable and flexible multi-range

• Load Cell linearization (up to 16 sections)

• Functions:

• Weight-Tare-Accumulation

• Manual Tare

• Piece Counting

• Dynamic and animal weighing

• Accumulation of weighings

• Communication via serial port with more than 50 selectable protocols

• Real-time clock management

• Possibility of regularly recording different variables of the device

• Communication with PC for data dump and device configuration

• 6 possible languages: Spanish, English, Portuguese, French, Italian and German.

• Configurable ticket printing

• Label printing

• Permanent updating of standard programmes

• Possibility of providing “Tailor-made software” to suit your needs

• Reloading programmes via serial port or network via ETHERNET or Wi-Fi
