Description
Capacity: 30 t

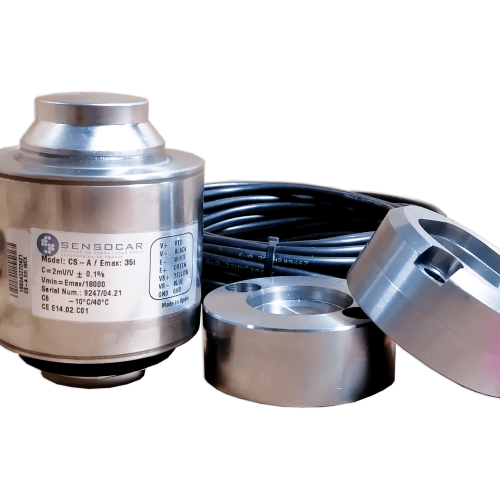

Compression load cell
Complies with 4000 divisions CE OIML-R60
Fully welded. Protected against humidity IP-69K (EN 60529:2018)
Manufactured in Stainless steel
With gas dischargers to protect against atmospheric discharges
Bell bearing support not necessary
Available in ATEX version (optional)
[II 1GD Ex ia IIC T4…T6 Ga]
[II 1GD Ex ia IIIC T135ºC Da]
Technical data
| Accuracy class | C3-C4 |
| Rated output | 2 ± 0.1% mV/V |
| Vmin | Emax/14000 |
| Excitation Voltage | 5÷15V |
| Input Resistance | 800 ± 3? |
| Output Resistance | 700 ± 3? |
| Temperature Compensation | -10ºC/+40ºC |
| Temperature limits | -30ºC/ +70ºC |
| Insulation resistance | > 5000 M? |
